Murphy bed Sizes

We carry and build two typs of murphy beds. The Spring version and Piston Version.

A majority of our beds will use the Spring system. Occasionally the piston system is required.

Spring System

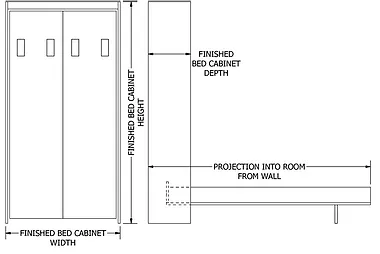

Spring Vertical (Upright version)

Twin: 85 1/4″h x 44 1/2″w x 16″d Projection 85″

Full: 85 1/4″h x 59 1/2″w x 16″d Projection 85″

Queen: 90 1/4″h x 65 1/2″w x 16″d Projection 90″

King: 90 1/4″h x 81 1/2″w x 16″d Projection 90″

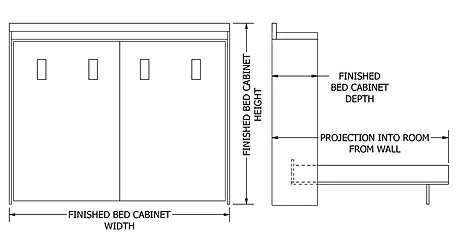

Spring Horizontal (Sideways version)

Twin: 49 3/4”h x 80″w x 16”d Projection 49”

Full: 64 3/4″h x 80″w x 16″d Projection 64″

Queen: 70 3/4″h x 85″w x 16″d Projection 70″

Piston Vertical (Upright version)

Twin: 82 1/8″h x 44 7/8″w x 15 7/8″d Projection 80″

Full: 82 1/8″h x 59 7/8″w x 15 7/8″d Projection 80″

Queen: 87 1/8″h x 65 7/8″w x 15 7/8″d Projection 84″

King: 87 1/8″h x 81 7/8″w x 15 7/8″d Projection 84″

Piston Horizontal (Sideways version)

Twin: 47 3/8″h x 81″w x 15 7/8″d Projection 43″

Full: 62 5/16″h x 81″w x 15 7/8″d Projection 58″

Queen: 68 5/16″h x 86″w x 15 7/8″d Projection 64″
